Fillet Weld Gauge
INR 1133
In stock
Description
Make - Accuplus

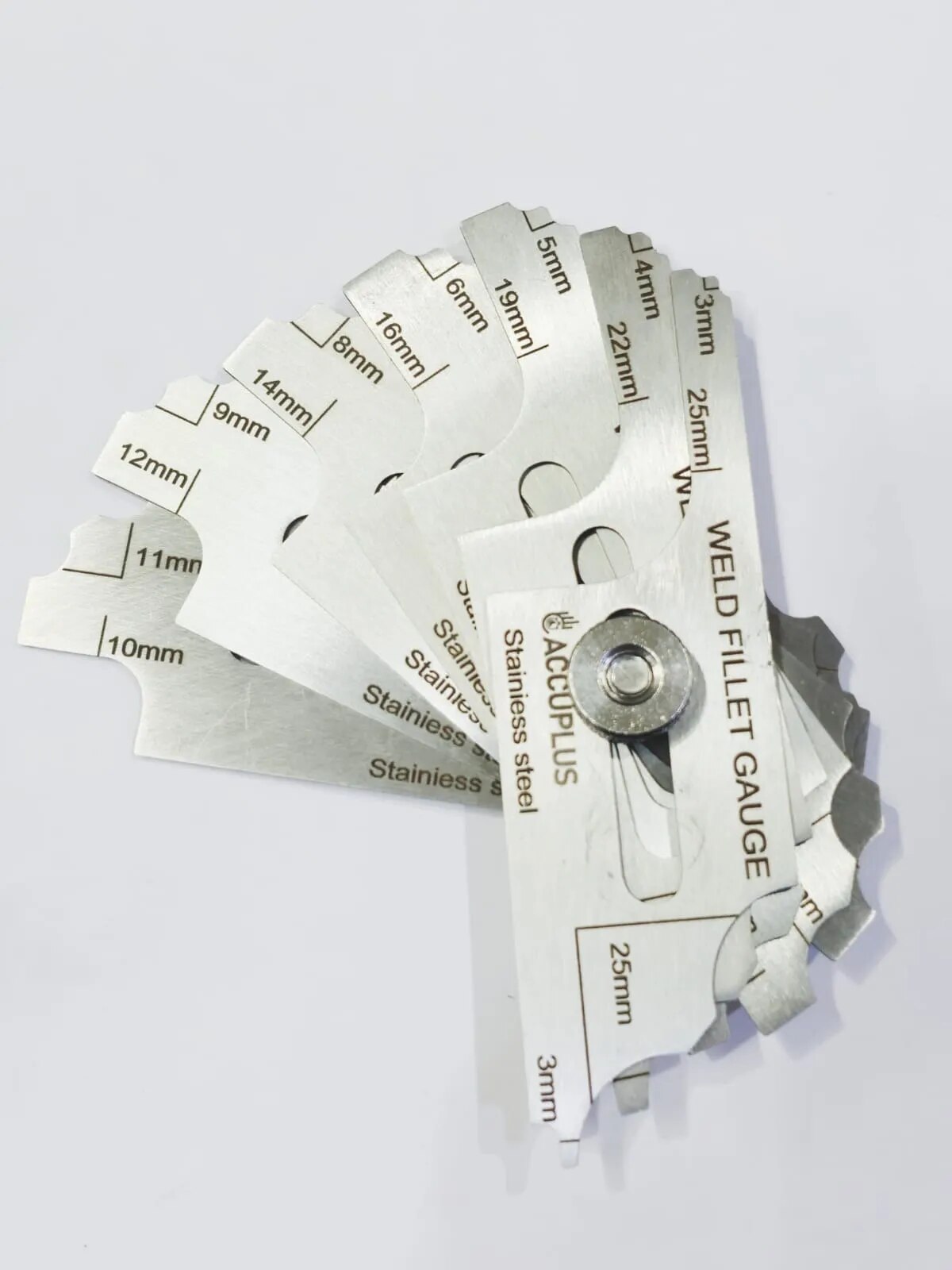

7 Leaf Type Fillet Weld Gauge
The fillet weld gauge is a precise inspection tool used to measure the size of fillet welds, which join two pieces of metal at an angle. Usually constructed as a pocket-sized set of stainless steel leaves, each leaf corresponds to a specific weld size measured in inches or millimeters.
Inspectors use these gauges to quickly verify two critical dimensions: the leg length of the weld and the theoretical throat thickness. Ensuring these dimensions meet engineering specifications is vital, as undersized welds risk structural failure, while oversized welds waste expensive consumables and cause unnecessary heat distortion.
